For a long time, the low temperature environment in the northern region has been regarded as the biggest pain point of electric vehicles. Low battery life, high energy consumption, slow heating and difficulty in charging have seriously affected users' car purchasing decisions and car-using experience.

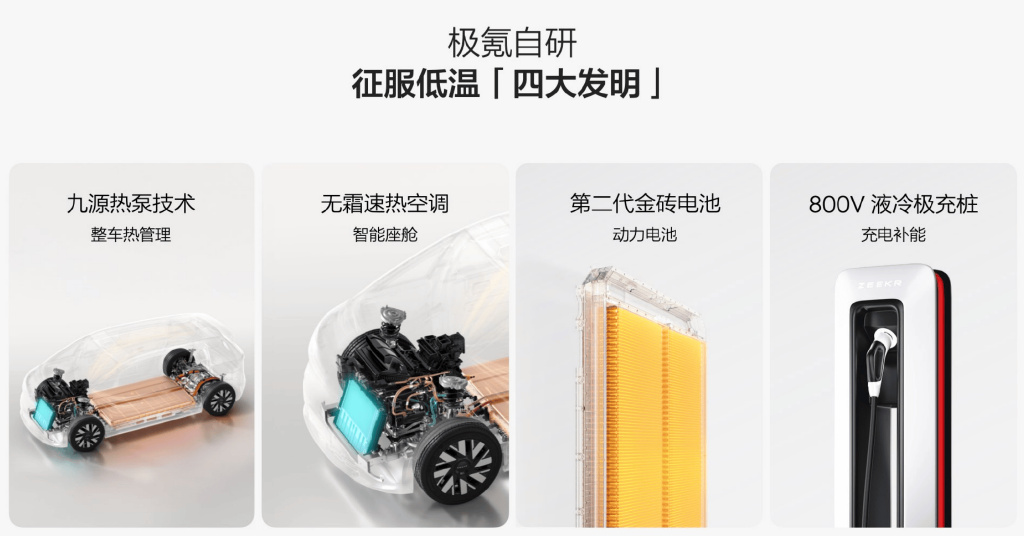

Zeekr takes "conquering low temperatures" as its anchor point. In the core areas of low-temperature travel such as vehicle thermal management, smart cockpit, power three-electric, and charging and energy replenishment, the industry's first four inventions: Nine-source heat pump, fast-heating frost-free air conditioner, 800V second-generation BRIC battery, and 800V extreme cold liquid-cooled charging pile . These inventions truly make the power performance, endurance replenishment, and energy consumption of electric vehicles "as low as normal temperature", breaking the prejudice that "electric vehicles cannot cross Shanhaiguan" and reshaping user perception with a car experience that exceeds expectations.

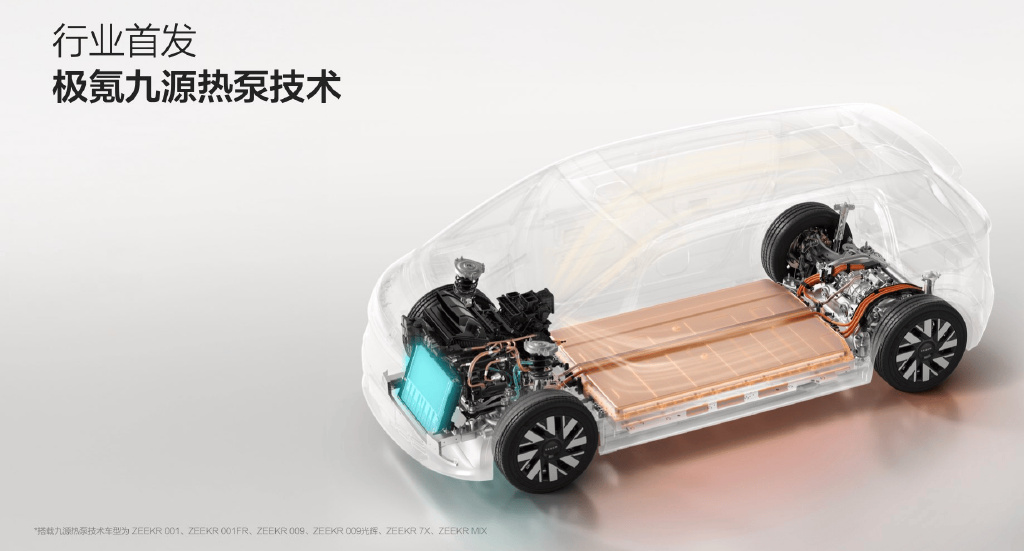

1. The industry's first nine-source heat pump technology, with the most heat sources, the widest temperature range, and the most intelligent temperature control:
The Jiuyuan heat pump has the most heat sources. Through the deep interaction of 4 waste heat sources, 2 residual heat sources and 3 auxiliary heat sources, it breaks the heat barrier of the whole vehicle and reduces waste. Taking chip waste heat as an example, its recovery power can reach 1700 watts, which is equivalent to saving 1.7 kWh of electricity per hour, and the saved electricity can run 10 kilometers more.
The widest temperature range, the Jiuyuan heat pump has the largest displacement and highest speed compressor in the industry, with a maximum speed of over 12,000 revolutions per minute, and can circulate and compress more than 500 liters of refrigerant per minute. The industry's widest operating temperature range of -40℃~50℃ effectively reduces heating electricity consumption and extends driving range. In a low temperature environment of -20℃, Zeekr can still absorb environmental waste heat to heat the battery. Based on this, Zeekr can achieve energy savings of more than 1,800 watts per hour, which is equivalent to an additional 10 kilometers of driving range.
The most intelligent temperature control, based on Zeekr's full-stack self-developed intelligent thermal management algorithm, the Jiuyuan heat pump can instantly change the heat flow strategy according to the heating request of the whole vehicle, replacing the multi-button panel with one-button intelligence, bringing the industry's largest number of 300+ intelligent temperature control modes, and refusing every bit of heat energy waste.

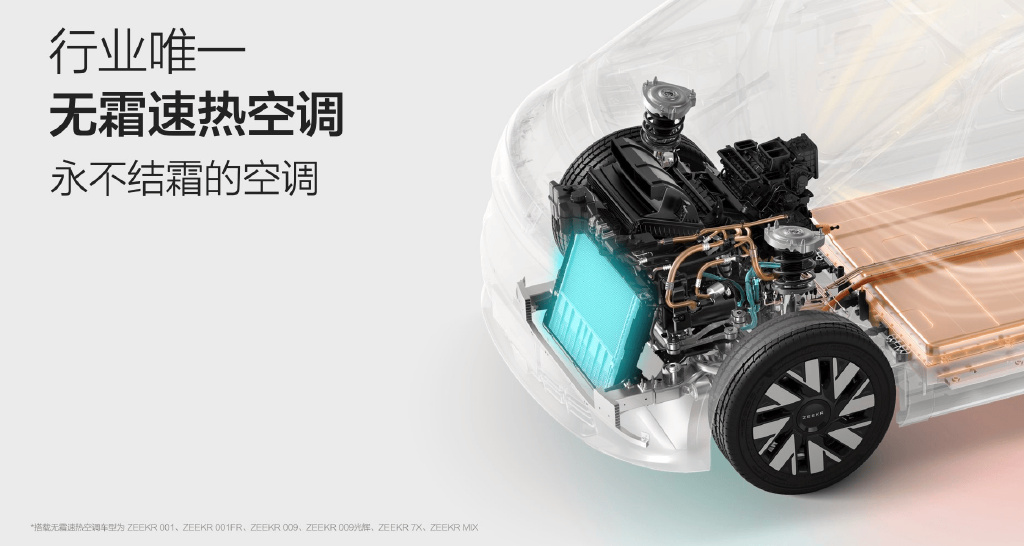

2. The industry's only fast-heating and frost-free air conditioner, the ceiling of car air conditioning experience, allows users to have "air conditioning freedom" in winter:
In response to the most common complaints from users about air conditioners, such as easy frost formation in winter, slow heating, and high energy consumption, Zeekr's fast-heating frost-free air conditioners have made three major optimizations in heat exchange temperature difference, heat exchange area, and heat exchange efficiency. Through the "refrigerant + coolant" dual-medium temperature control technology, the heat exchange temperature difference is controlled within 2°C to avoid frost on the external heat exchanger and ensure rapid and continuous heating of the air conditioner; through the optimized design of the integrated module flow channel, hot and cold isolation is achieved, the heat exchange area is increased, and the heat exchange performance is improved; drawing on aerodynamic CFD technology, the pipe aperture and curvature are optimized to reduce the coolant flow resistance to half of the original. In addition, Zeekr has more than 140 patents in the fields of thermal management and air conditioning.
With the combined effect of the three optimizations, the fast-heating frost-free air conditioner can achieve a comprehensive heat exchange efficiency that is 130% higher than the traditional single-medium heat exchange method. Actual test data shows that after standing in a -20℃ environment for 12 hours, the Zeekr fast-heating frost-free air conditioner only takes 10 minutes to raise the cabin temperature to 20℃, easily achieving "air conditioning freedom" in winter.

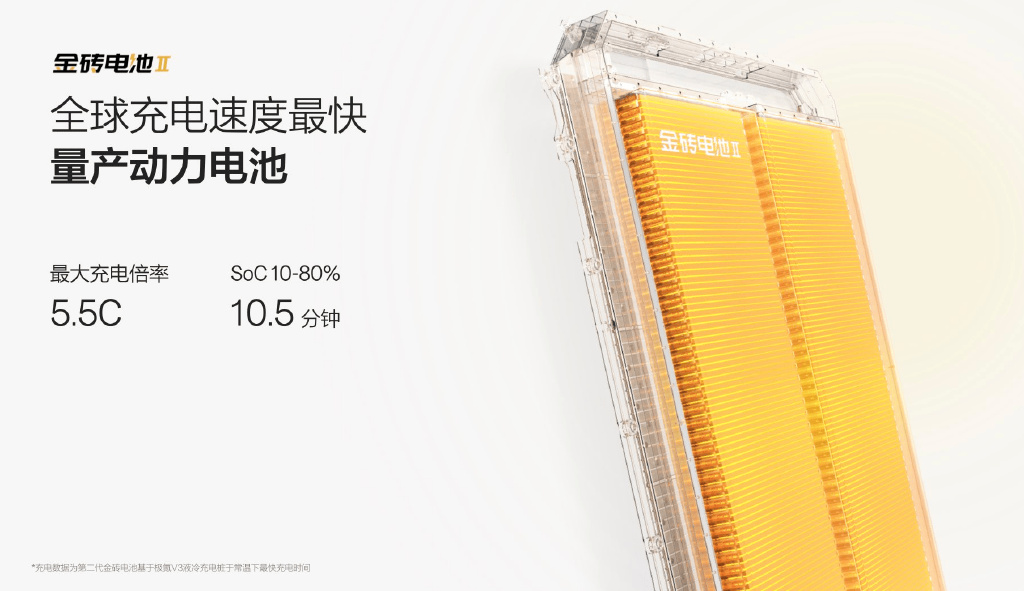

3.Full-stack self-developed 800V ultra-fast charging second-generation BRICS battery, the world's fastest charging mass-produced battery, and industry-leading low-temperature performance:
The second-generation BRICS battery uses the second-generation lithium-ion acceleration technology developed by the whole stack, which reduces the low-temperature comprehensive impedance by 36% and increases the conductivity by 40%, making lithium ions naturally "winter swimming"; it uses the self-developed composite heat shield insulation technology, with a polymer material "insulation blanket" on the top to prevent heat from spilling out, and a precision-molded "down blanket" on the bottom to firmly lock in the heat and achieve three-dimensional battery insulation; the battery preheating and temperature maintenance function will actively remind users to charge and recommend nearby charging stations through the car assistant when the vehicle power is less than 20%, and the thermal management system supports the battery preheating function. The measured data shows that after standing for 12 hours in a -10℃ environment, the Zeekr7X(configuration|inquiry)equipped with the second-generation BRICS battery can be charged from 10% to 80% in just 18 minutes, setting a new low-temperature ultra-fast charging mass production industry record.
In addition to the second-generation BRICS battery, Zeekr's 800V ultra-fast charging ternary lithium battery also has excellent low-temperature performance. Under -10℃ conditions, the low-temperature discharge capacity is increased by 3%, the thermal management energy consumption is reduced by 7%, and the vehicle's range is increased by more than 30 kilometers.
As the final work of the year, the release of Zeekr's Winter Expedition technology further demonstrated Zeekr's strong strength and opened a new chapter for domestic pure electric vehicles to enter the northern market.
